Kertészeti erdőtűz-oltó teherautó

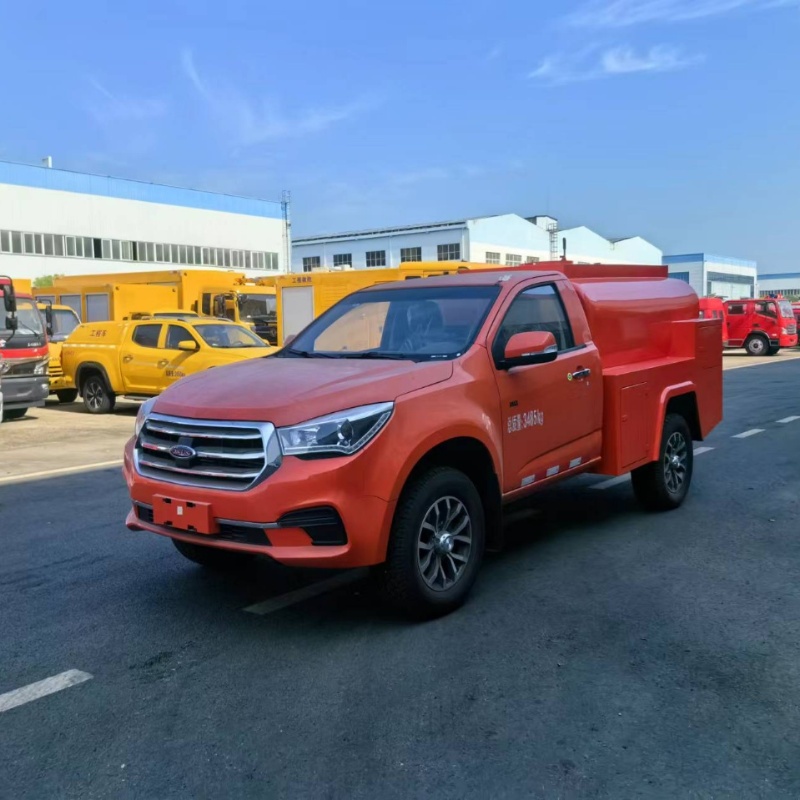

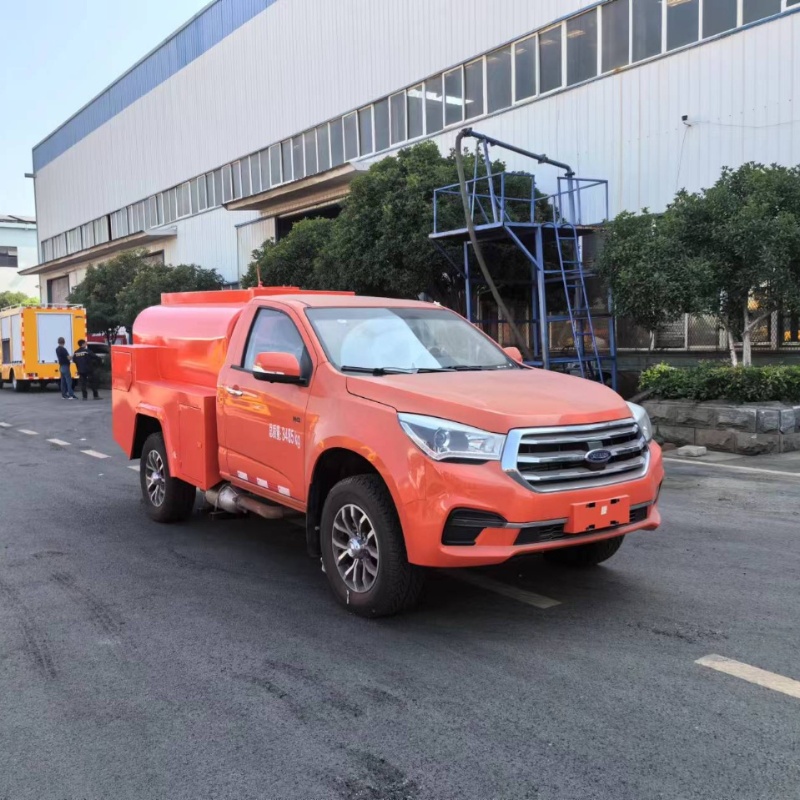

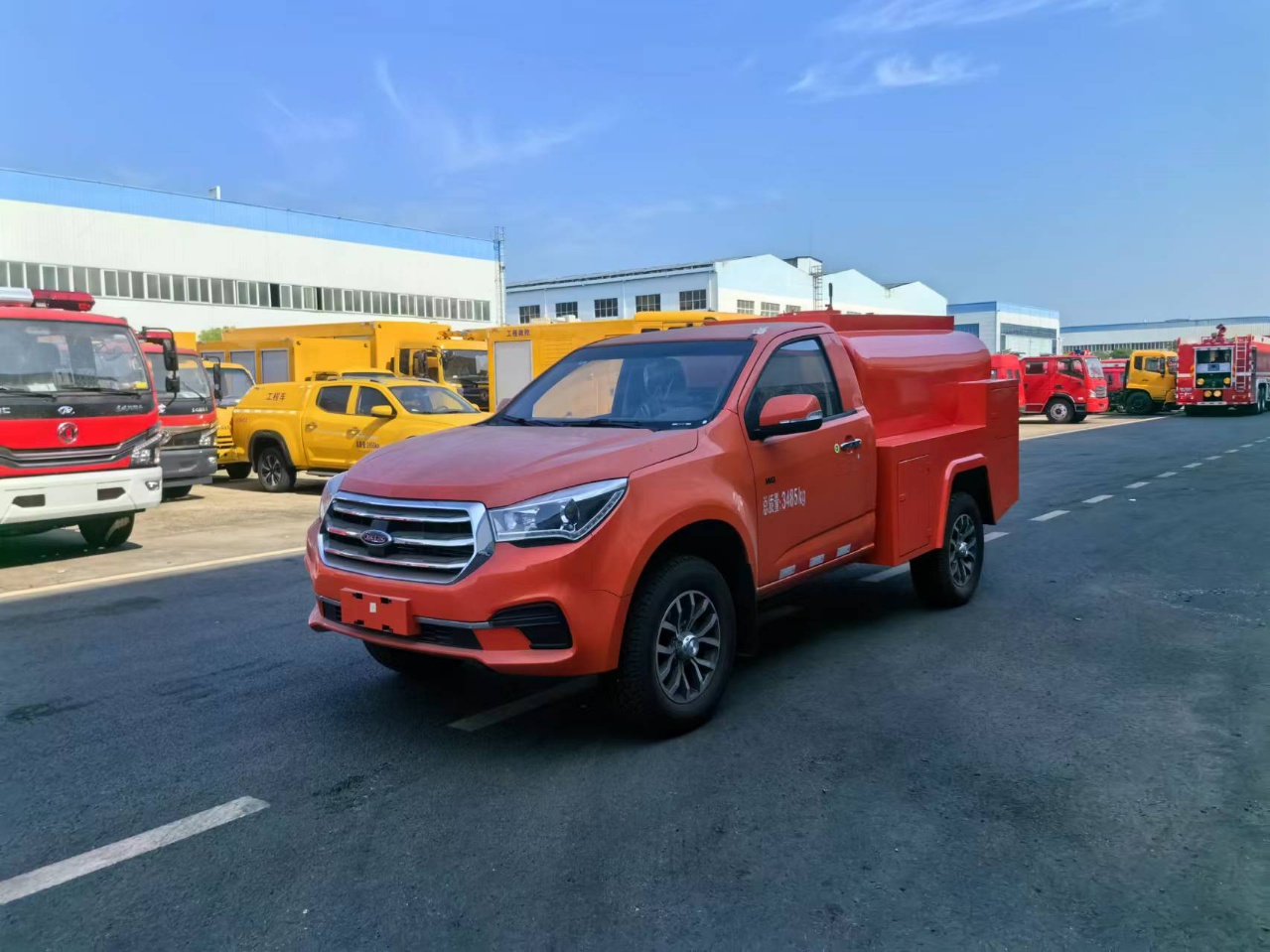

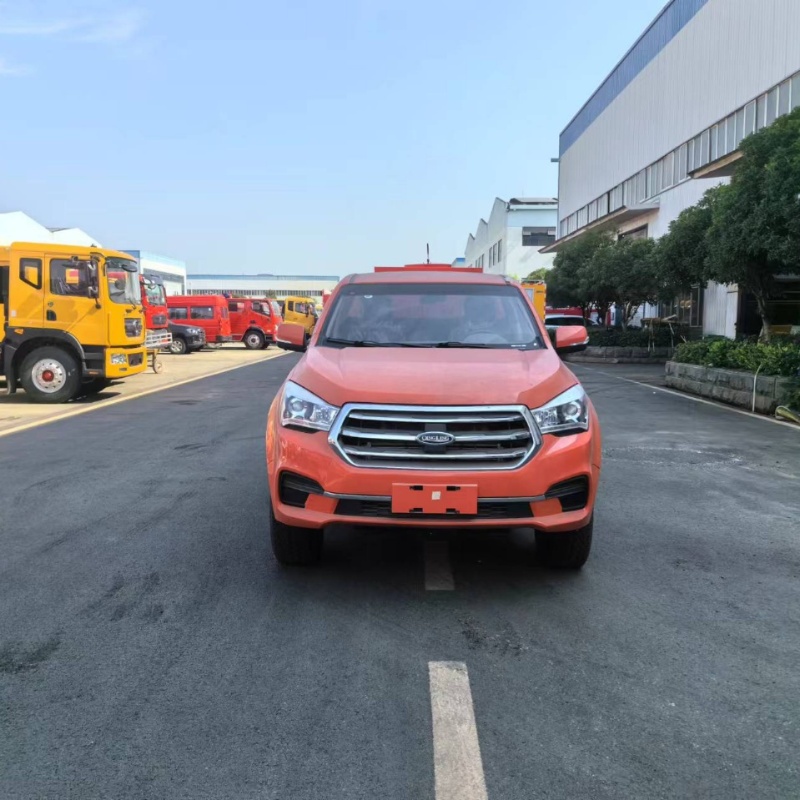

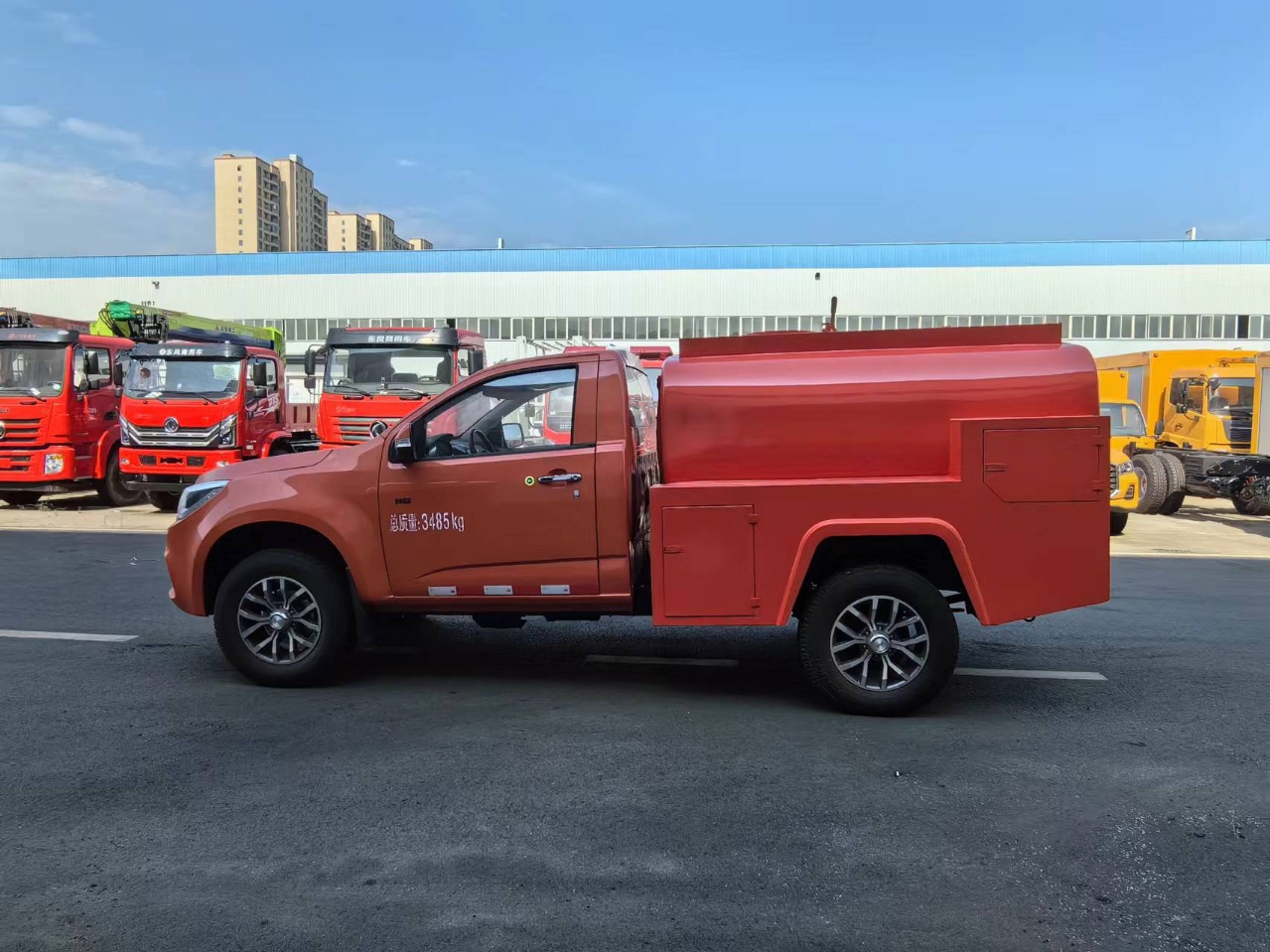

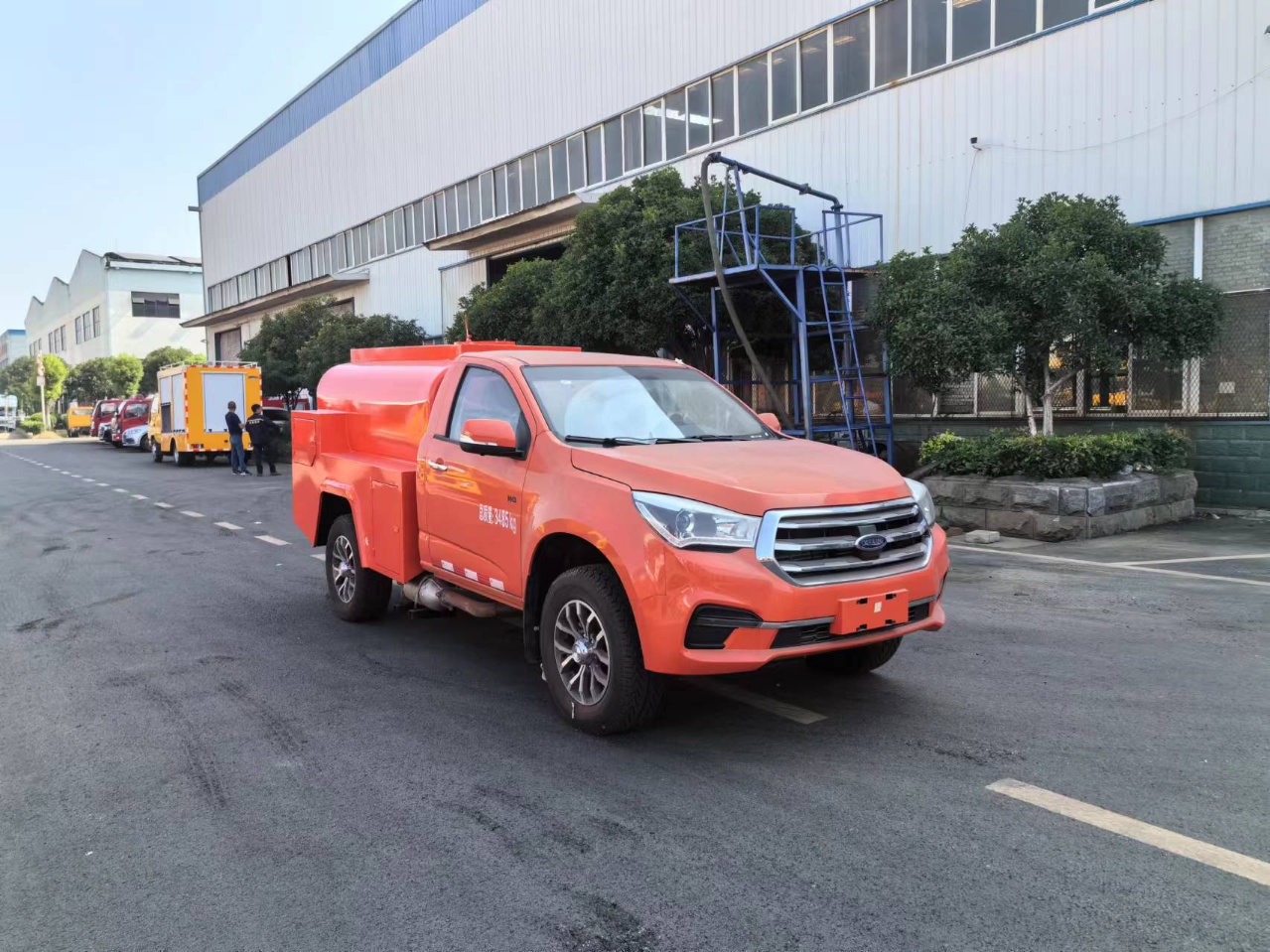

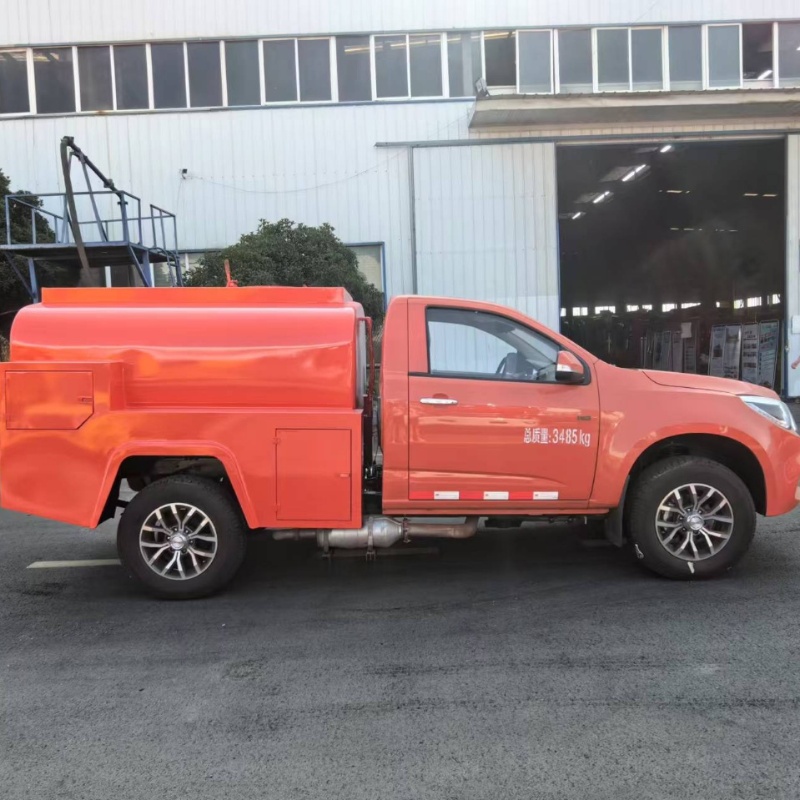

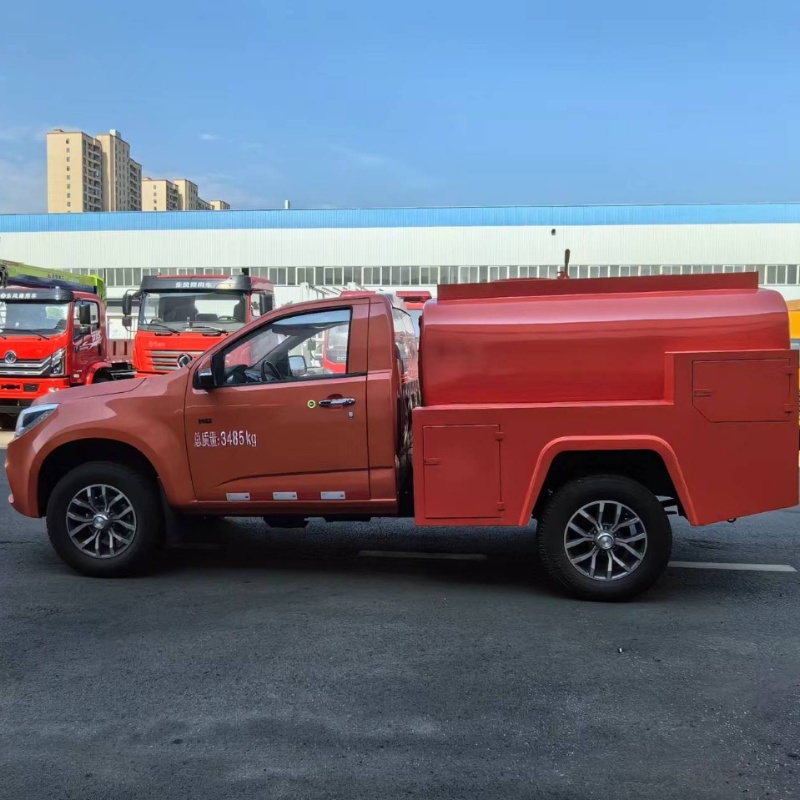

The truck is a small sprinkler truck of the Chengliwei brand. The following is a detailed introduction from aspects such as its vehicle body, chassis, and upper structure:

Vehicle technical parametersTotal mass and volume: The total mass is 3485 kg. The tank volume is 1.21 cubic meters. The rated load capacity is 1155 kg. The effective volume is 1.15 cubic meters. It can meet the sprinkling operation needs of a certain area. Dimensions: The dimensions are 5140×1880×2060mm, 1980mm, 1940mm, and 1900mm. The vehicle body is relatively small and can flexibly shuttle through narrow spaces such as urban streets and communities. Unladen weight and wheelbase: The unladen weight is 2200 kg. The wheelbase is 3096mm. The number of axles is 2. The number of tires is 4. The tire specifications are 245/70R17LT 10PR and 265/60R18.

Landscaping forest fire extinguishing fire sprinkler truck. Here is an introduction to it: Function characteristics Fire extinguishing functionHigh-pressure water spraying: Equipped with a high-pressure water pump and water cannon, it can spray a powerful water column with long range and large water volume. It can effectively reach higher trees and farther fire source locations, quickly suppress and extinguish forest fires. Multi-directional water spraying: The nozzle can rotate 360 degrees to achieve multi-angle water outlet. It can spray water to extinguish fire from different directions without leaving any dead corners, improving fire extinguishing efficiency. Fog spraying mode: It can be switched to fog spraying mode to spray fine water mist, increase air humidity, reduce temperature, help extinguish smoldering fire points after open flame, prevent re-ignition, and also have a certain effect on controlling smoke. Landscaping functionWatering and irrigation

Chassis technical parametersChassis model: Adopting the QL1030CZGA Y chassis produced by Qingling Motors Co., Ltd. The model is QL1030CZGA Y. The drive type is 4×4. It has certain off-road capabilities and can run on some unpaved roads.

Engine: The engine model is 4KH1CT6H1. It is produced by Isuzu (China) Engine Co., Ltd. The displacement is 2999 ml. The power is 105 kw. The emission standard is National VI. It adopts a four-stroke combustion cycle, high-pressure common rail fuel supply type and turbocharged intercooled intake mode. It is powerful and environmentally friendly and energy-saving.

Transmission: Mechanical manual transmission. It has 5 forward gears and 1 reverse gear. The operation is simple and the reliability is high. Transfer case: Four-wheel drive mechanical manual. It can realize two-speed conversion of all-wheel drive/rear-wheel drive. It can select the appropriate driving mode according to different road conditions
