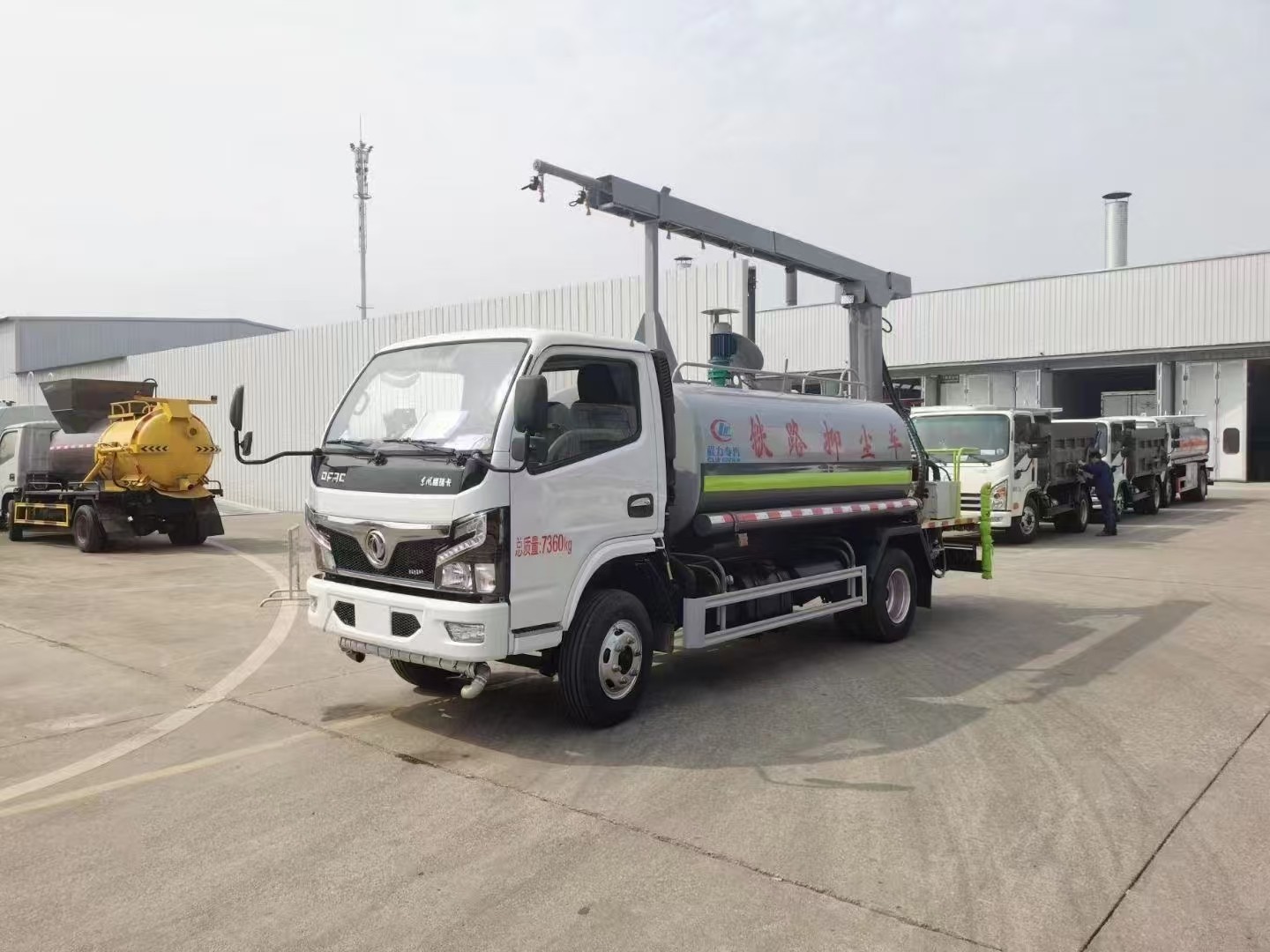

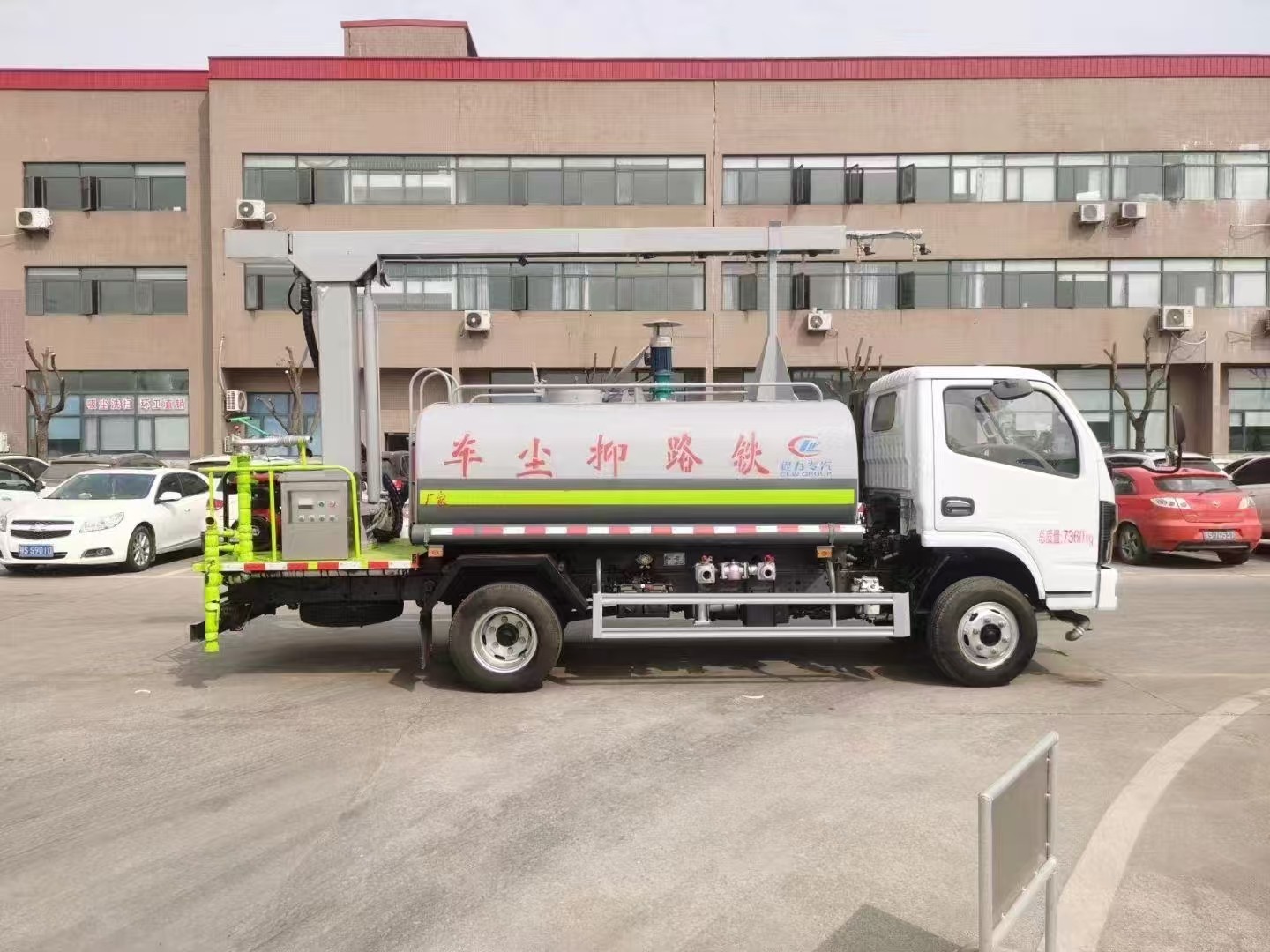

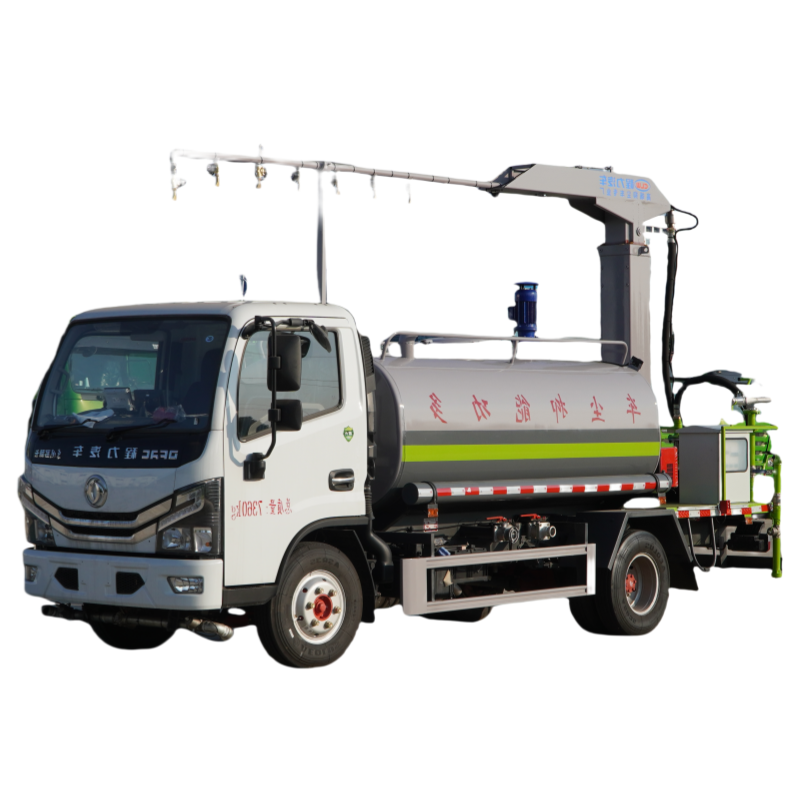

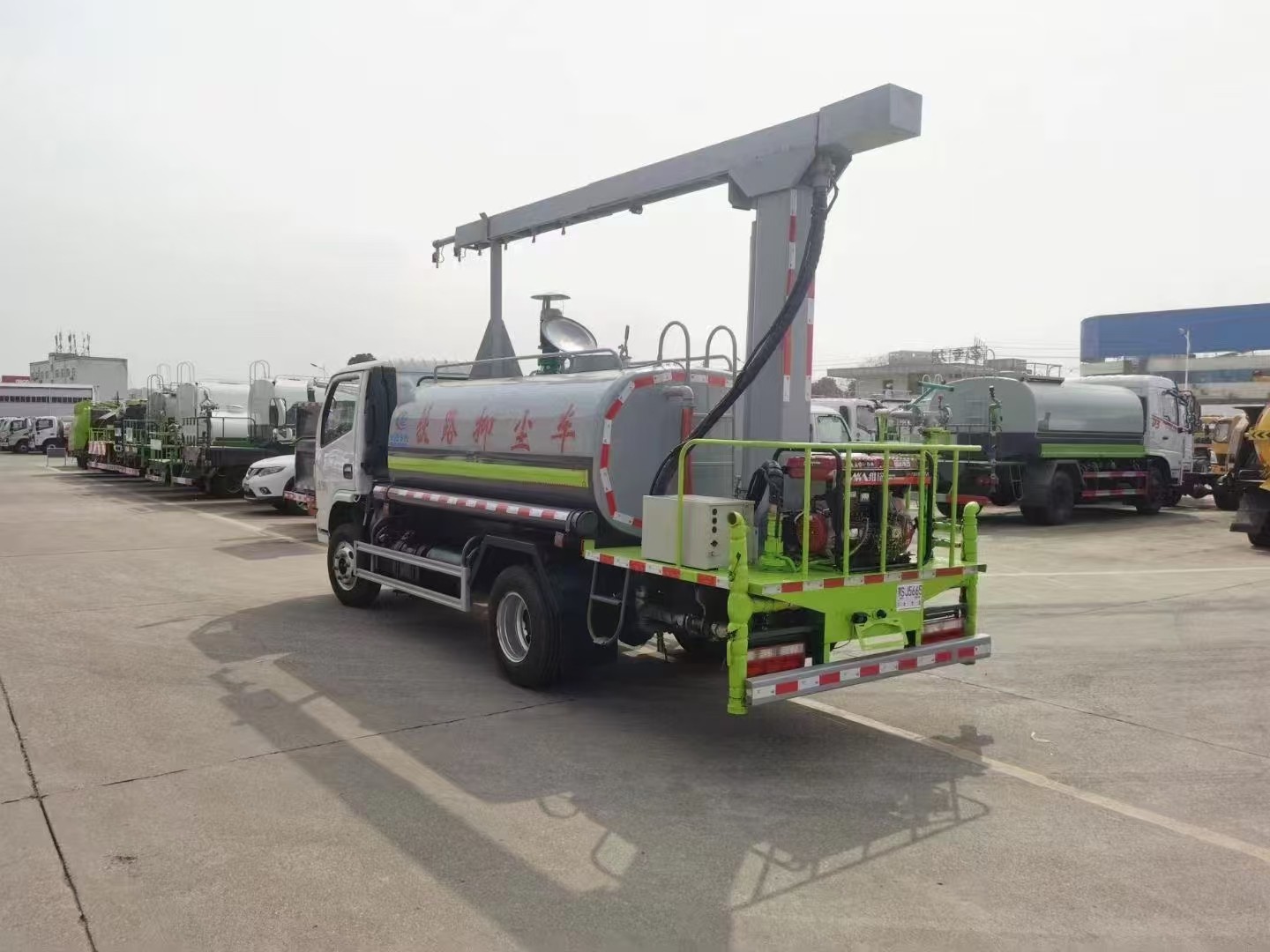

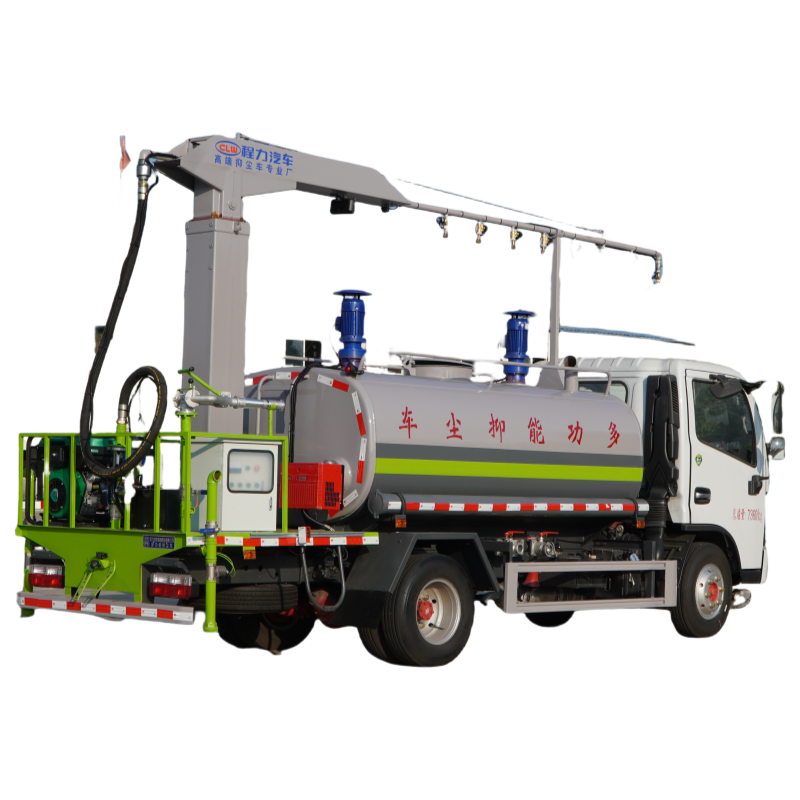

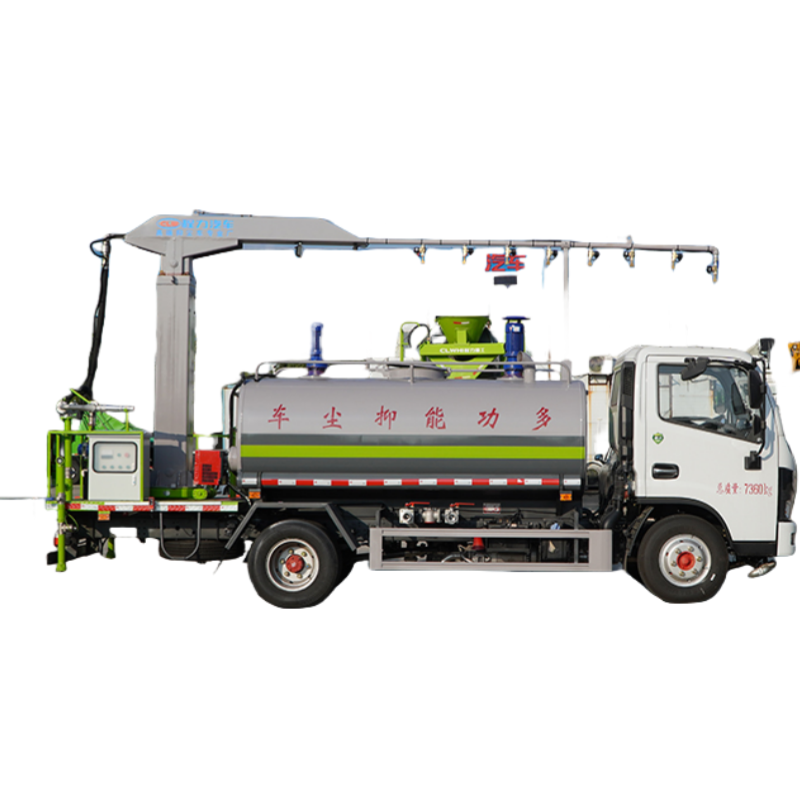

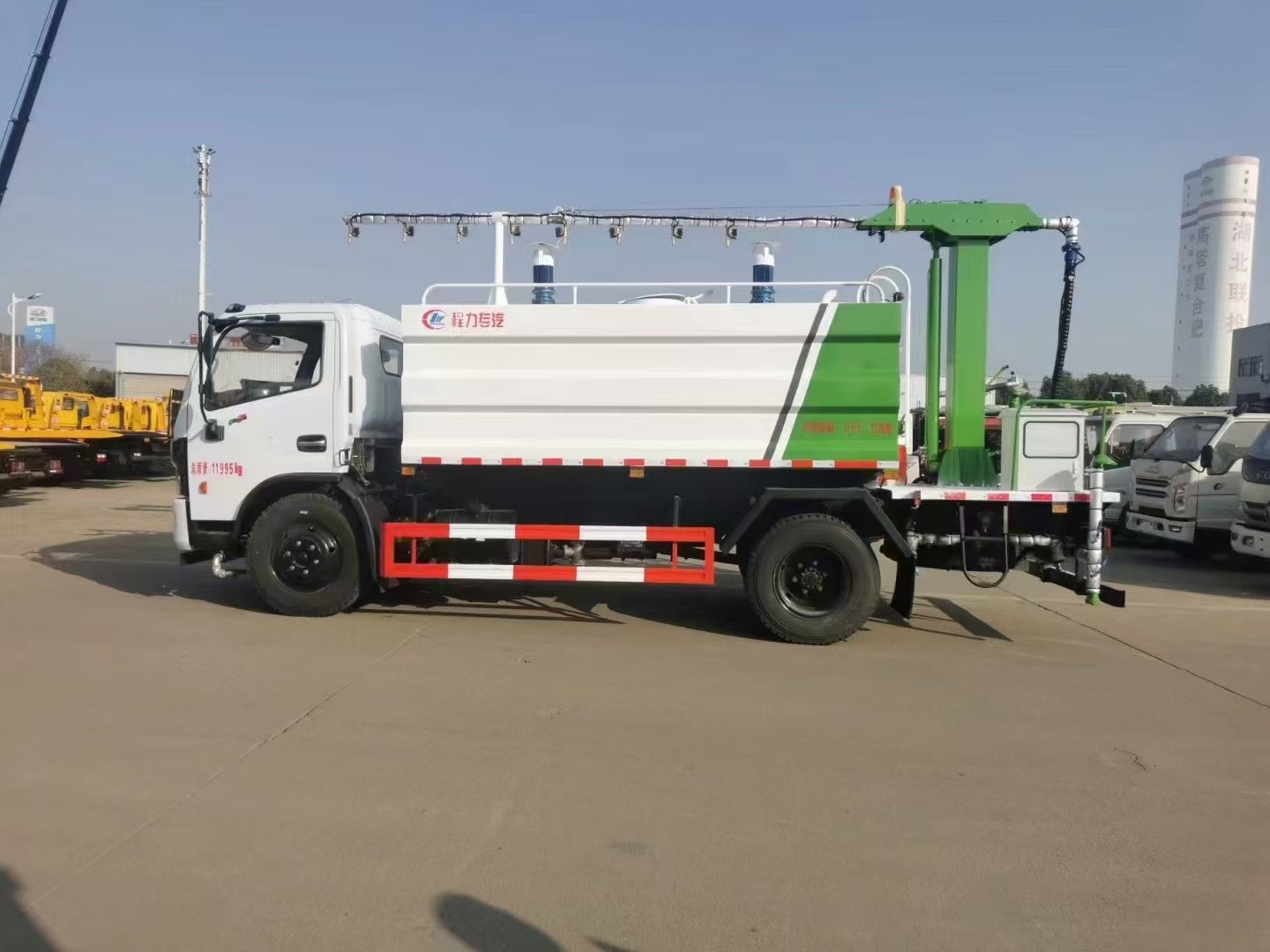

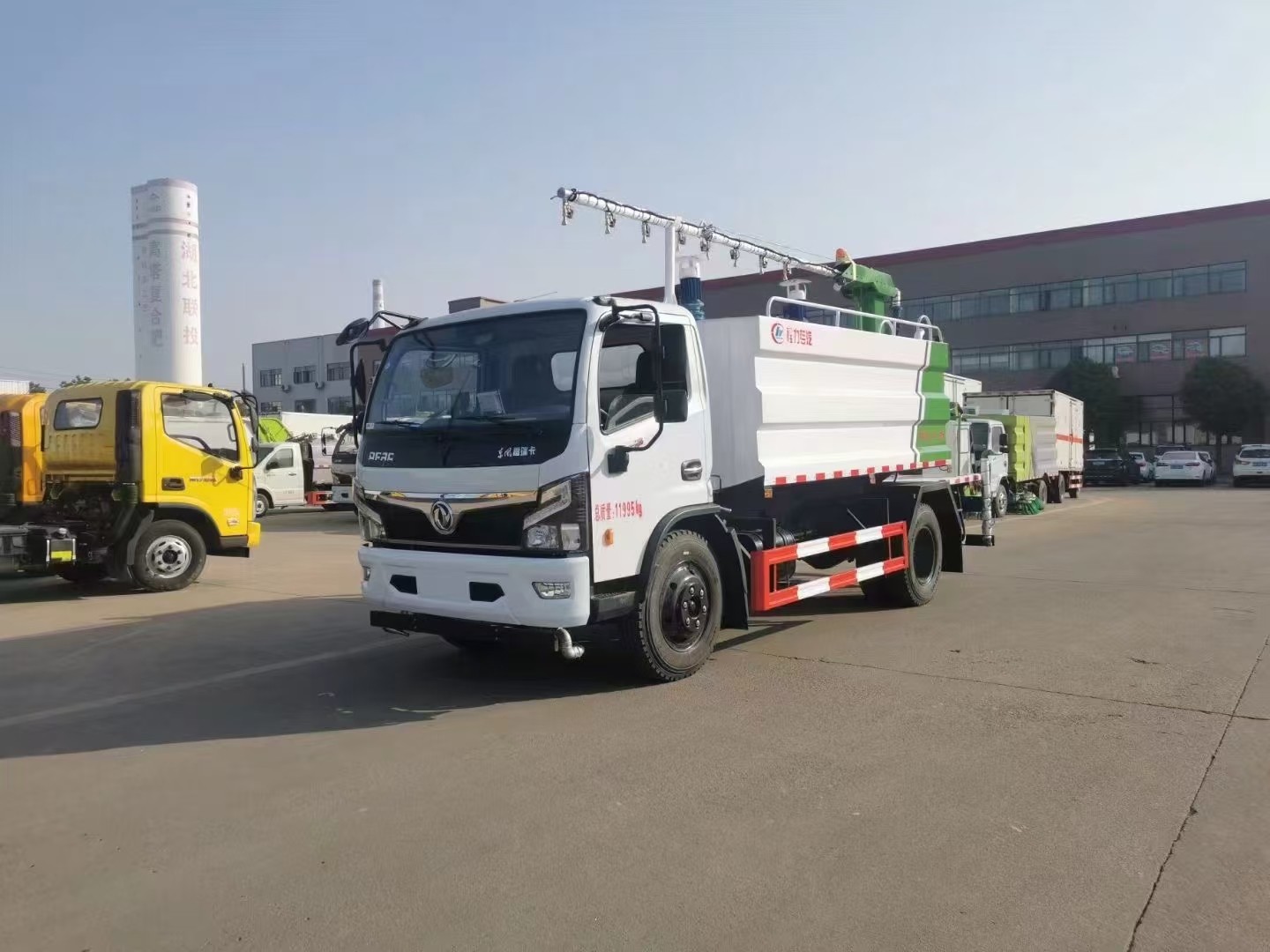

In the realm of railway transportation, especially for bulk cargo like coal, the DONGFENG Railway Dust Suppression Truck has emerged as a pivotal solution to tackle dust pollution. Among its notable models, the DONGFENG 5T 4x2 Railway Dust Suppression Truck stands out for its balanced performance and adaptability. Designed with a 4x2 drive configuration and a 5 - ton payload capacity, this truck is tailor - made for the rigorous demands of railway logistics, ensuring efficient dust suppression during cargo transit.Railway environmental protection dust suppression vehicle
| Main Configuration | |||
| DONGFENG 5T 4x2 Railway Dust Suppression Truck | |||
| Drive Configuration | 4X2 | ||
| Gross Mass (kg) | 7360 | ||
| Curb Weight (kg) | 3315 | ||
| Rated Load (kg) | 3,850 | ||
| Engine Power | CY4BK461 | ||
| Wheelbase (mm) | 3308 | ||
| Vehicle Dimensions (mm) | 5995*1980*2800 | ||
| Superstructure Configuration and Parameters | Effective Water Tank Volume (m³) | 5 | |
| Generator Set | Diesel | ||
| Generator Power (Kw) | 8 | ||
| Spray Bar Ground Clearance (m) | 3.5——5.6 | ||
| Tank | Tank Material and Thickness | 4mm WISCO carbon steel plate | |
| Head Material and Thickness | Q235B carbon steel, 5mm | ||
| Water Pump | Model | 40/50 | |
| Flow Rate | 40 | ||
| Head (m) | 50 | ||
| Dust Suppression System | Power Unit | 24V vehicle power supply | |
| Burner | Imported burner, using diesel from the chassis fuel tank to heat the tank | ||
| Flow Meter | Independent flow meter to record cumulative spray volume | ||
| Generator | 8KW generator | ||
| Optical Sensor | One on each side for hook stop spray | ||
Railway environmental protection dust suppression vehicle As a Railway special dust suppression vehicle, the DONGFENG series integrates advanced spraying technology to address the unique challenges of railway environments. Whether it’s suppressing dust on coal - laden trains or preventing particulate matter from contaminating railway ，Railway coal transportation dust suppression vehicle these trucks act as mobile guardians of cleanliness. The DONGFENG 5T 4x2 Railway Dust Suppression Truck excels in narrow railway corridors, where its compact design and precise spraying mechanism ensure minimal water waste and maximum dust control.
Environmental sustainability is at the core of the Railway environmental protection dust suppression vehicle concept, and DONGFENG trucks embody this ethos. Equipped with high - capacity tanks and adjustable mist nozzles,Railway coal transportation dust suppression vehicle they comply with strict emission standards while reducing the ecological impact of railway operations. For coal transportation—a major source of dust pollution—the Railway coal transportation dust suppression vehicle variant of DONGFENG trucks is indispensable. It effectively coats coal surfaces with a fine water mist, preventing dust from escaping during loading, unloading, and transit, thus safeguarding both the environment and railway workers’ health.
The DONGFENG Railway Dust Suppression Truck lineup, including the specialized 5T 4x2 model, demonstrates a commitment to innovation in railway environmental protection. As a Railway special dust suppression vehicle,Railway coal transportation dust suppression vehicle it combines durability with cutting - edge technology, making it the preferred choice for major railway networks and logistics companies. DONGFENG 5T 4x2 Railway Dust Suppression Truck Whether deployed in vast coal - mining regions or busy urban rail hubs, these trucks serve as a vital link in the chain of sustainable railway operations, proving that efficient dust control and environmental responsibility can go hand in hand.
DONGFENG 5T 4x2 Railway Dust Suppression Truck For industries reliant on railway coal transportation, the Railway coal transportation dust suppression vehicle functionality of DONGFENG trucks translates to reduced operational disruptions caused by dust - related issues. Meanwhile, as a Railway environmental protection dust suppression vehicle, it contributes to broader goals of carbon neutrality and green logistics, ensuring that every mile of railway transport is not just efficient, but also eco - friendly. The DONGFENG brand has thus set a benchmark in the sector, offering solutions that are as robust as they are responsible.
Kína vezető speciális teherautók, tartálykocsik, pótkocsik és alkatrészek gyártója vagyunk. Látogasson el hozzánk Suizhou városába, a kínai speciális célú járművek gyártóbázisába.
T/T 30-50% előlegként, a fennmaradó összeg pedig a szállítás előtt. A fennmaradó összeg kifizetése előtt megmutatjuk a termékek és csomagok fotóit.
EXW, FOB, CFR, CIF, DAF, DDU
Általában 20-30 napot vesz igénybe az előleg beérkezése után. A konkrét szállítási idő a rendelés tételeitől és mennyiségétől függ.
Igen. Professzionális K+F csapatunk van, pontosan az Ön igényei szerint tudjuk előállítani a terméket.
Közvetlenül a gyárból értékesítünk, így az ár nagyon versenyképes. A különböző termékek ára eltérő. Az ár az Ön speciális igényeitől is függ. A pontos ár megismeréséhez kérjük, vegye fel velünk a kapcsolatot.
Igen, 100%-os tesztet végzünk a szállítás előtt
Élethosszig tartó követési szolgáltatást és egy év ingyenes garanciát biztosítunk minden termékünkre. Emellett ingyenes képzést és technikai támogatást nyújtunk a termék javításához. Szükség esetén eredeti alkatrészeket is biztosítunk, Önnek csak a szállítási költséget kell fizetnie.
